Description

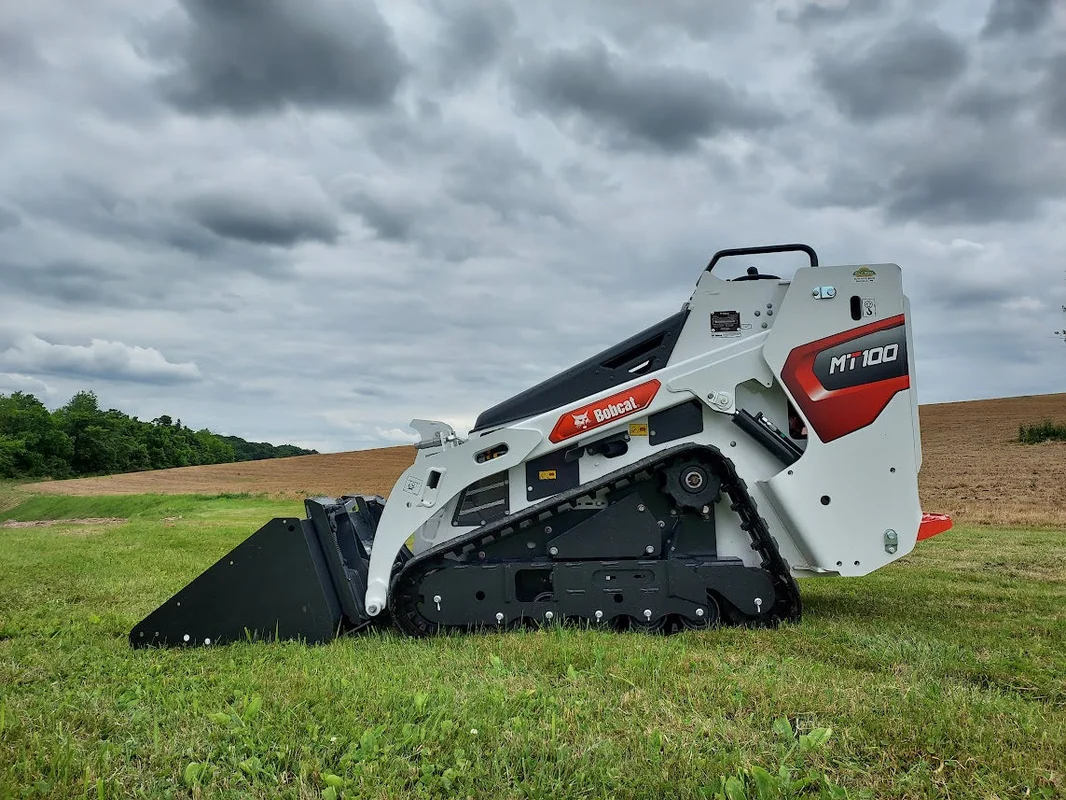

No need for wheelbarrows, shovels or other hand tools when you roll onto jobsites with the Bobcat® MT100 mini track loader. The MT100 travels through gates, doorways and other narrow spaces with ease. The machine also delivers a big boost in power with a 1,000-pound rated operating capacity, powerful breakout force and impressive lift height. The optimized roller spacing on the MT100’s track system improves ride quality for enhanced operator comfort and confidence when working long days. Easy, tool-free access to maintenance areas and advanced safety features, including neutral start interlocks, are standard on the MT100 mini track loader, while sealed rollers eliminate the need for daily roller maintenance and decrease downtime. This loader also features high-flotation tracks that allow it to move across wet and muddy ground.

Specifications:

Engine:

• Emissions Tier (EPA): Tier 4
• Engine Cooling: Liquid
• Engine Fuel: Diesel
• Displacement: 55 in3
• Number of Cylinders: 3
• Horsepower: 24.8 hp

Performance:

• Rated Operating Capacity (ISO): 1000 lbs
• Carry Position ROC with Standard Counterweight – Under Carriage Position: 1300 lbs
• Tipping Load: 2898 lbs
• Operating Weight: 3390 lbs
• Ground Pressure (Rubber): 5.25 psi
• Travel Speed: 4.1 mph
• Travel Speed – Reverse: 2.9 mph

Capacities:

• Fuel Tank: 7 gal

Hydraulic System:

• Pump Capacity: 12 gal/min
• System Relief @ Quick Couplers: 2900 psi
• Auxiliary Std Flow: 11 gal/min

Dimensions:

• Length: 106.2 in
• Width: 35.6 in
• Height: 54.6 in
• Height to Bucket Hinge Pin: 80.9 in
• Length of Track on Ground: 41.4 in
• Reach @ Maximum Height: 18.6 in

Features:

• Lift-Arm Support: Standard
• Auxiliary Hydraulics: Standard
• Spark Arrestor Muffler: Standard
• Bob-Tach Attachment System: Standard
• Wide Track: Optional
• Neutral Start Interlocks: Standard
• Lift Arm Lockout with Manual Bypass: Standard
• Tilt Lockout: Standard
• Built-In Tie Down & Crane/Lift Locations: Standard
