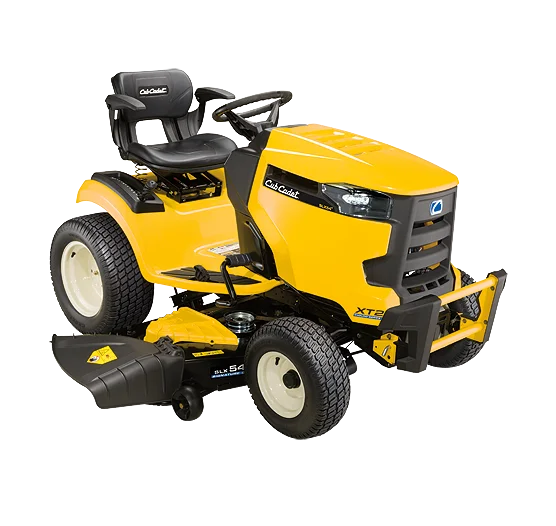

Description

********NO LONGER AVAILABLE********

ENGINE: 25 HP Kohler® 7000 Series OHV W/Smart choke
Twin/Cast-iron sleeve.
Fully pressurized, automotive-style oil pump w/ spin-on oil filter.

POWER SYSTEM: Tuff Torq® foot-controlled hydrostatic transmission (K46)

Engine to Transmission: Heavy-duty belt.

Cruise Control: Soft touch engagement.

Transmission Housing: Cast aluminum.

Rear Axle: 3/4″ w/dual PM steel drive hubs.

Steering/Turning Radius: Optimized steering system, manual sector and pinion/16″.

Front Pivot Bar: Heavy-duty cast-iron (5-year limited warranty/unlimited hours)

Front Axles: Heavy-duty 3/4″ through machined bushings.

Ball Joints: Fully-adjustable/Automotive-style.

Hood: Front pivot, High impact with quick removal design.

FRAME: Fully robotically-welded frame with new e-coating corrosion defense system (5-year limited warranty).

Bumper:FastAttach™ Brush Guard

ELECTRICAL SYSTEM: Battery Voltage 230 cold crank amps.

Charging System: Flywheel Alternator – 12 amp regulated.

Headlights:LED High Illumination.

System Monitor Package:Digitial hour meter/service minder, oil, battery, brake and PTO start sequence.

Brakes: Automotive-style disc.

Engine Start: Electric.

Safety Systems: Neutral Start, operator presence, reverse safety switch, brake pedal lock, RevTek reverse mowing technology

PTO Clutch: Electronic fingertip engagement.

Seat: Cub Comfort™ high-back seat with 10 degree incline and slide.

DIMENSIONS
Length/Width/Height
68″/60″/42.5″

Tires (Front/Rear):
16″ x 6.5″ ball bearing/22″ x 9.5″.

Tire Tread: Multi Trac.

Forward Speed: 5.5 mph.

Reverse Speed: 3.1 mph.

Fuel Tank Capacity: 3 gal. easy fill, rustproof.

Engine Oil Capacity: 2 qt.

Wheelbase: 47″.

Estimated Weight: 470 lbs.

Deck Lift: Lever/12-position/spring assisted.

Cutting Width/Blades: 54″/Triple Blade.

Deck Construction: Fabricated.

Deck Cutting Height: 1″ – 4″

Anti-scalping Wheels (front/rear): 2 Ball/2 Ball/Nose Roller.

Mulch Kit: Optional.

Deck Spindles: 3/4″ with steel cap and Triple Lip Sealed.

Deck Pulleys: Split steel spindle pulleys/oversized heavy-duty idlers.

Deck Attach/Removal: QuickAttach™ (no tools required).

Deck Wash: Patented SmartJet™ high-pressure deck washing system.

WARRANTY: 3-year unlimited hours (includes powertrain) & 5-year chassis & front axle unlimited hours/limited lifetime fabricated deck shell.
